500 Series
Integrated Dishwasher
Sanitise
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

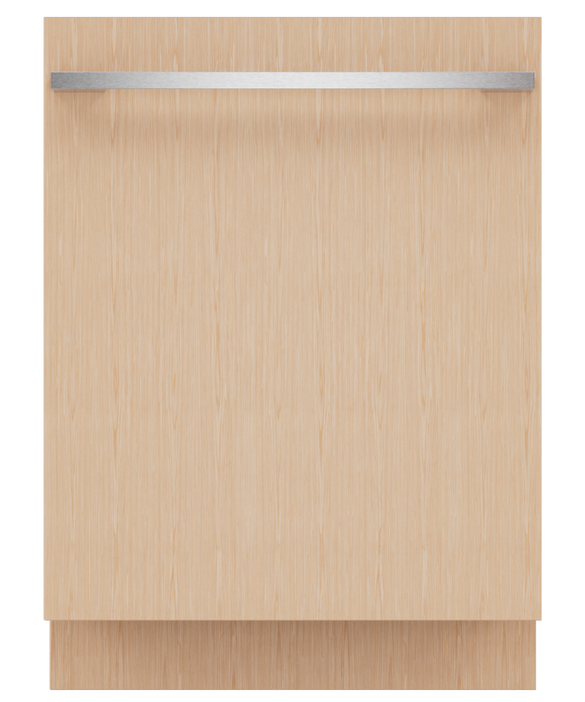

Integrate your dishwasher into cabinetry with a custom door panel and handle to match your kitchen design. The soft-touch LED controls are positioned on the top of the inner door, for a sleek exterior.
Add the Sanitise wash modifier to any cycle for a final high-temperature rinse that helps to kill 99.99% of bacteria.* *Independently tested to eliminate more than 99.99% of Staphylococcus aureus and Escherichia coli.
For effective drying, the dishwasher door automatically opens at the end of the cycle to help remove excess moisture. Add the +Dry modifier on any cycle for an enhanced dry, ideal for plastics.
The Auto Wash program uses sensors to detect how dirty your dishes are and set the ideal wash, reducing unnecessary water and energy use for a more efficient clean.

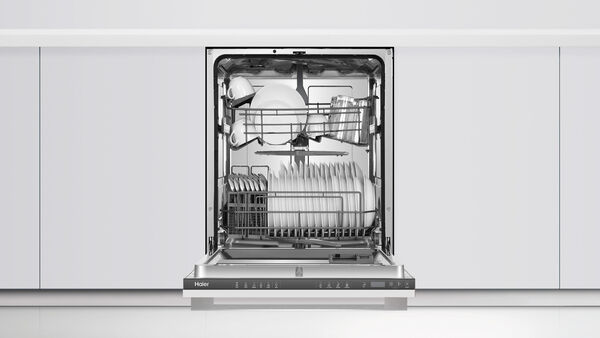

With generous capacity, this dishwasher has a height-adjustable upper basket to make room for tall dishes in the lower basket, plus foldable cup racks and tines.

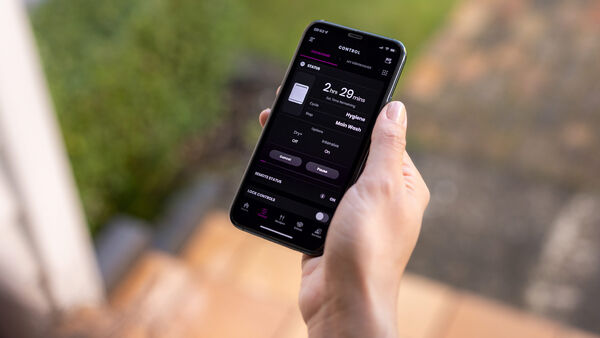

With Wi-Fi connectivity you can control your dishwasher through smart home speakers or your SmartHQ™ app. Select and start a cycle remotely, get an alert when the cycle is done, and more.
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates round plates up to (lower basket) | 320mm |
| Accommodates round plates up to (top basket) | 250mm |
| Fold down tines | |
| Place settings | 15 |
| Consumption Attributes | Value |
|---|---|
| Energy Consumption (Normal Eco program) | 246kWh/year |
| Energy rating | 4 star |
| Water consumption per cycle | 12.2L |
| Water rating (WELS) | 5 star |
| Controls Attributes | Value |
|---|---|
| Electronic capacitive touch controls | |
| Energy saving delay start option of up to 24 hours | |
| SmartHQ app compatible | |
| Wi-Fi connectivity |
| Features Attributes | Value |
|---|---|
| Adjustable height, foldable cupracks | |
| Auto Door Open Dry | |
| Flood protection | |
| Height adjustable top basket | |
| Keylock | |
| Removable cutlery basket | |
| Rinse aid indicator light | |
| ThermoDry system | |
| Triple filtration system |
| Performance Attributes | Value |
|---|---|
| Noise emissions | 46dBA |
| Product dimensions Attributes | Value |
|---|---|
| Depth | 554mm |
| Height | 820 - 880mm |
| Width | 597mm |
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
| Wash Program Modifiers Attributes | Value |
|---|---|
| + Dry | |
| Half load | |
| Intensive | |
| Sanitise | |
| Wash modifiers | 4 |
| Wash Programs Attributes | Value |
|---|---|
| 60 min | |
| Auto | |
| Eco | |
| Glass | |
| Heavy | |
| Normal | |
| Wash programs | 6 |
