90cm 500 Series
Integrated Insert Wall Rangehood
Any image or information associated with this model is preliminary and may be subject to change.
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

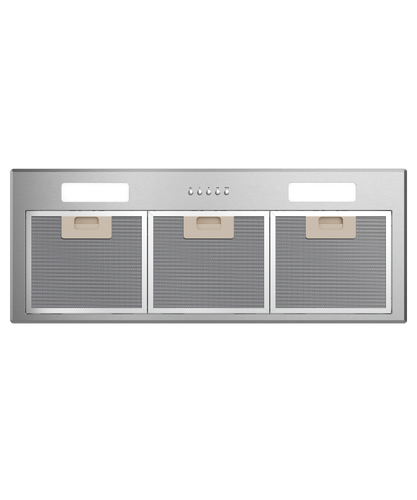

For a minimal look in your kitchen, this insert rangehood integrates seamlessly into cabinetry above your cooktop.
Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.
The aluminium filters are easy to remove and dishwasher-safe, for quick and simple cleaning.
Thoughtful design features enhance your cooking experience, with responsive push-button controls and energy-efficient LED lighting to illuminate your cooktop.
This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.
| Accessories (included) Attributes | Value |
|---|---|
| Aluminium filter | 793598 |
| Recirculation carbon filter | 792481 |
| Fan ratings Attributes | Value |
|---|---|
| Maximum pressured air movement EN61591 | 780m³/hr |
| Installation and cleaning Attributes | Value |
|---|---|
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Recirculation | Optional |
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
| Power requirements Attributes | Value |
|---|---|
| Supply voltage | 220 - 240V |
| Product dimensions Attributes | Value |
|---|---|
| Depth | 277mm |
| Height | 260mm |
| Width | 792mm |
| Product information Attributes | Value |
|---|---|
| Control type | Push |
| Ventilation features Attributes | Value |
|---|---|
| Light type | LED |
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
