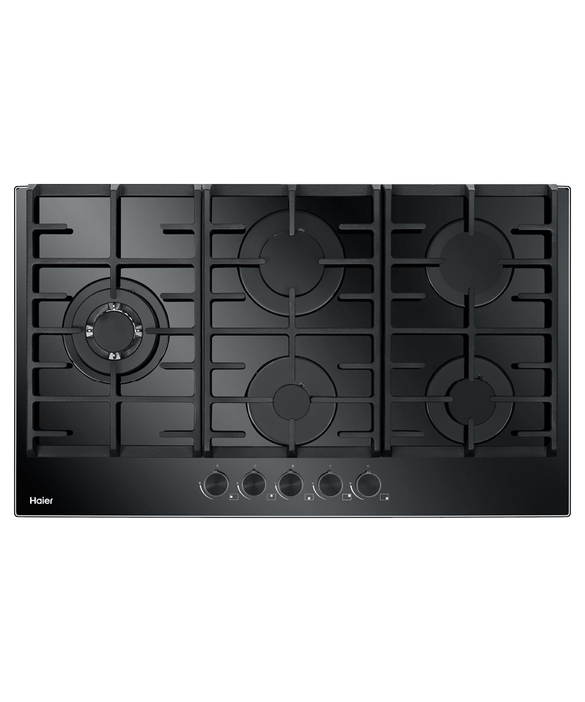

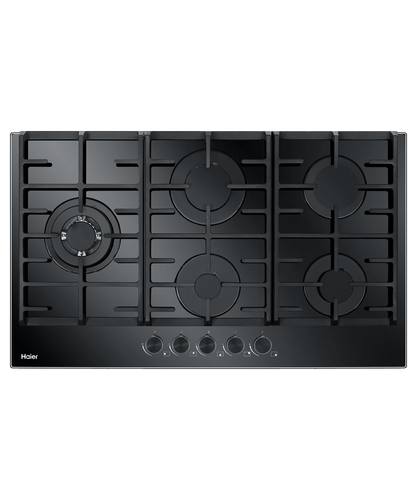

90cm 500 Series
Gas on Glass Cooktop
LPG or natural gas compatible
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
Master high heat cooking with the powerful wok burner, or use a smaller burner for low simmer control.

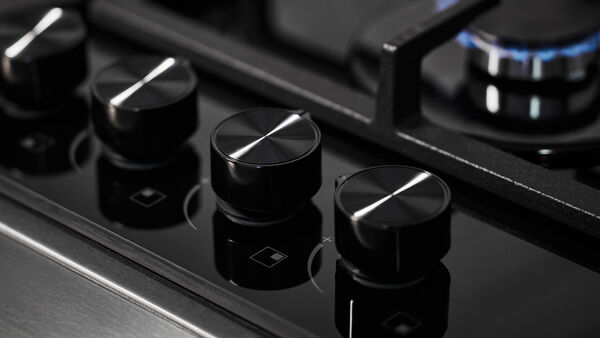

With electronic ignition and intuitive dial controls.

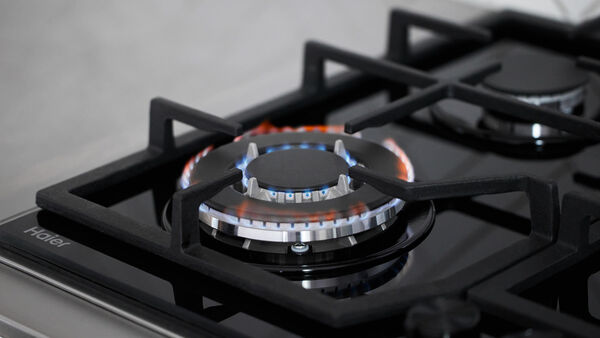

If the flame is accidentally extinguished, a flame failure device turns off the gas for your safety.
Cast iron trivets form a flat surface, making it easy to slide your pots and pans across the cooktop as you create a delicious meal.
This gas on glass cooktop matches the wider Haier family of appliances, pairing well with a black wall oven.
| Burner ratings Attributes | Value |
|---|---|
| Centre front | Auxiliary 3.6MJ/h |
| Centre rear | Rapid burner 10.8MJ/h |
| Left front | Wok burner 13.7MJ/h |
| Right front | Semi rapid burner 6.3MJ/h |
| Right rear | Semi rapid burner 6.3MJ/h |
| Controls Attributes | Value |
|---|---|
| Dial with anisotropic finish | |
| Family match | Black wall ovens |
| Single surface trivet |
| Performance Attributes | Value |
|---|---|
| Cast iron trivets | |
| Electronic ignition | |
| LPG/Natural gas compatible |
| Power requirements Attributes | Value |
|---|---|
| Supply voltage | 220 - 240V |
| Product dimensions Attributes | Value |
|---|---|
| Depth | 510mm |
| Height | 98mm |
| Installation cutout dimensions (Depth) | 477mm |
| Installation cutout dimensions (Width) | 832mm |
| Width | 860mm |
| Safety Attributes | Value |
|---|---|
| Flame failure system |
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
| Zones Attributes | Value |
|---|---|
| Cooking zones | 5 (including 1 wok burner) |
